In the end I redid PDF to SVG conversion via:

https://cloudconvert.com/pdf-to-svg

Would be interesting to benchmark #Inkscape, this and #Lightburn.

Amis #makers , nous avons dans notre #fablab de Pleaux dans le Cantal une graveuse/découpeuse #laser avec un contrôleur comme celui sur l'image (type Ruida DSP).
Il peut être contrôlé depuis #RDworks (gratuit, non libre, Windows uniquement) ou #lightburn (payant, non libre mais compatible #linux )
Vous connaissez, vous, un #logiciellibre qui puisse communiquer avec ce type d'interface ?

D'avance merci :)

#boostme please !

Woodworking – the Paint Rack

I have finalized my design for a paint rack, and have been actively cutting the parts. The overall design is large, but is mainly so that I can hold all the various paints I have collected. Cut from 3mm plywood, the assembly is fairly fast and easy, and the structure is surprisingly solid once together. Initially I was using wood

https://www.halfling13.com/2023/07/woodworking-the-paint-rack/

#10WattLaser #D1Pro #Lightburn #PaintRack #Patreon #XTool

YESSSS I GOT #LIGHTBURN 1.4.00 RUNNING ON #NIXOS!! Thank you @codemonkeymike - now to tidy it up and try to submit a pull request!!

Hello #linux and #debian friends and strangers — is it possible for an #appimage to mess up your USB drivers somehow?? My laser cutter won't laser-cut, it's reporting the wrong PID and VID to #Lightburn. Correct in lsusb. What. (it's not dec/hex confusion) Could running the Arduino IDE appimage have changed the USB driver settings or something?? That's the only thing I can think of that's changed..??

Is it because I'm an empty nester, that I can fit more into my nests than online nesting software can? 😂

I had a race:- Tetris-ed the pieces, and cut them out, and the nesting software was still struggling to get past 19% material usage.

So, either we don't worry about software taking over the world, or smart business people have moved the smart nesting algorithms into paid software🤔

#laser #LightBurn #nesting

#LASER TIIIIIME

I just need to figure out a way to char the pieces slightly less 🤣

#lightBurn #laserCutting

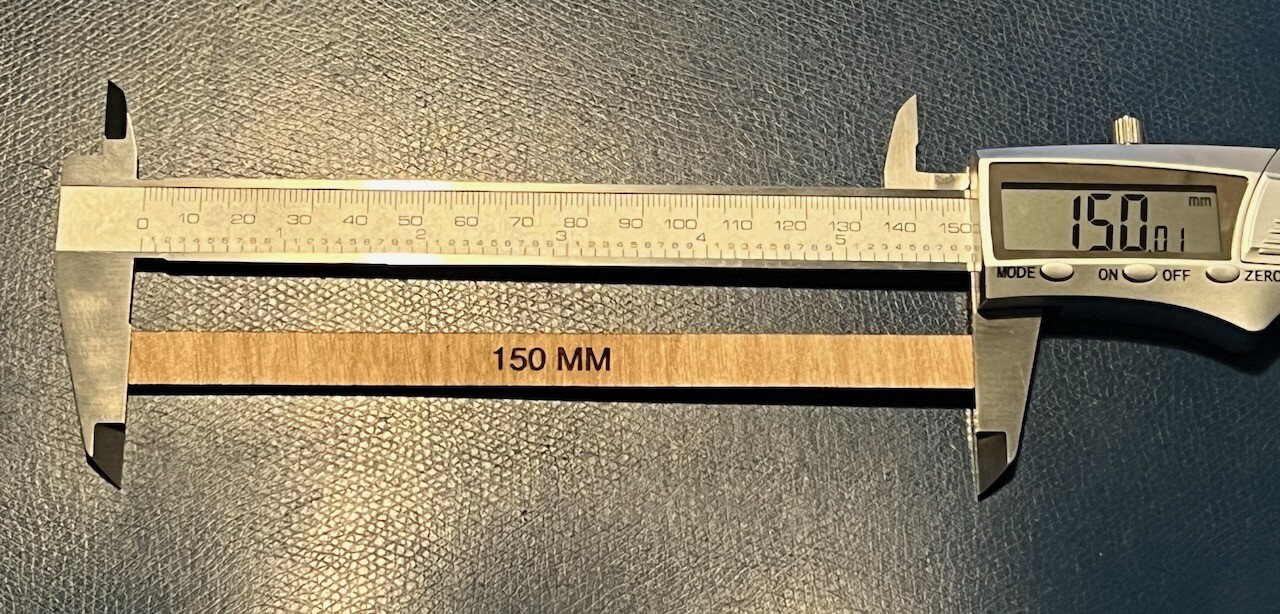

For measurements up to 150mm (longest I can measure), this is the kind of accuracy I'm getting in both directions with the 5W xTool D1 Pro #LaserCutter, using a 0.12mm offset in #LightBurn.

I spent the day learning more about Inkscape; particularly how to convert a bitmap image to a usable svg format. Laser cutters aren't too fond of bitmap images. They're just too pixelated.
Anyway, I had some good success!

#laserengraver #lasercutter #woodworking #atomstack #bitmap #svg #inkscape #lightburn

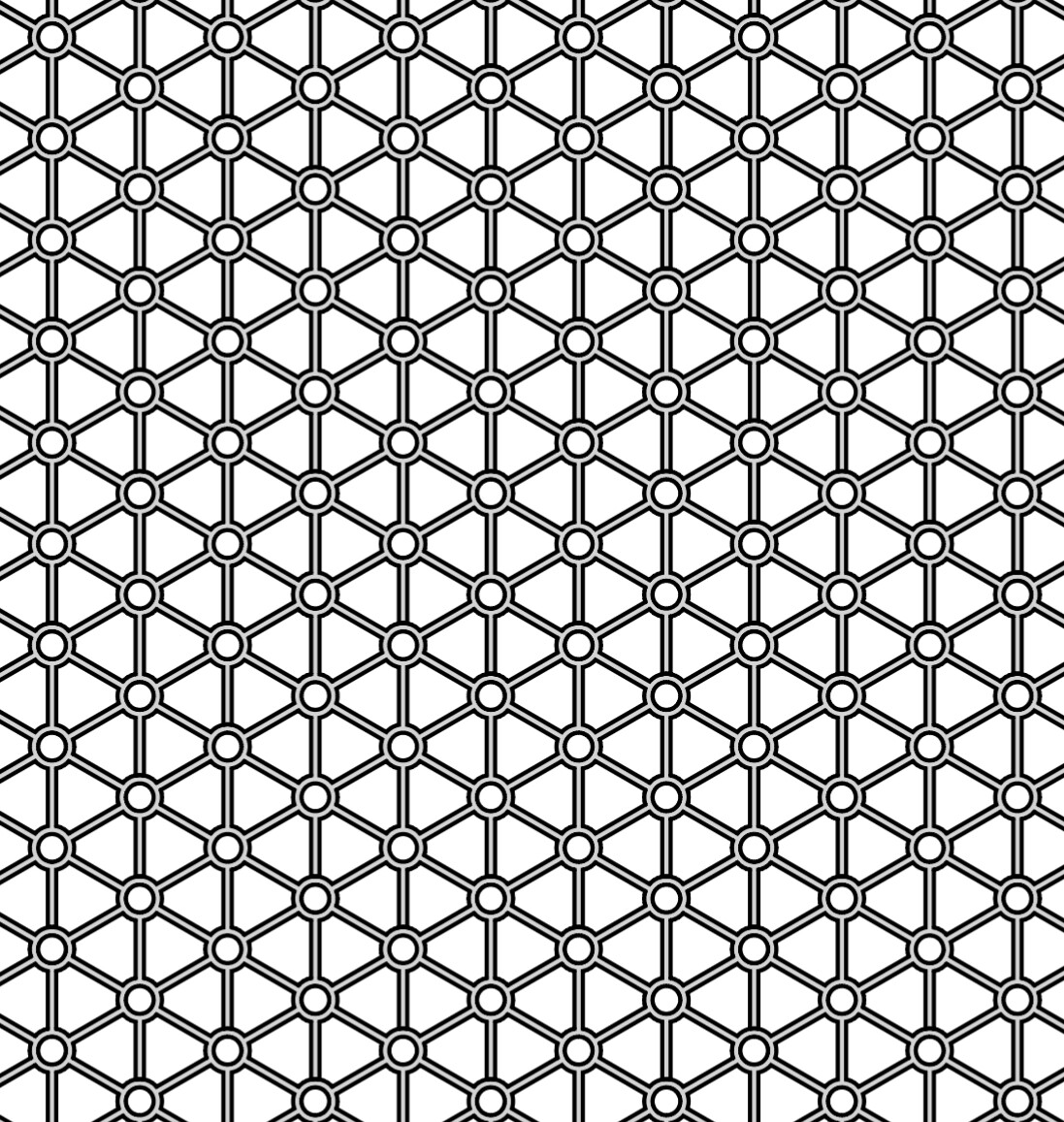

Trying to learn #OpenSCAD. Also a bit obsessed with IsoGrid patterns lately, so I hacked together an OpenSCAD IsoGrid generator. Lets you export an SVG that can be used in #Fusion360 or #LightBurn.

No software should be able to install this fast, it's unnatural #LightBurn on #Fedora #Linux

I bought a 50W CO2 laser about a year ago. I've been using LightBurn software to run the laser and it's been a pleasure to use once I got it figured out.

One outstanding issue I still had to sort out was getting LightBurn to control the on/off of the air assist.

Should have been straight forward, according to the LightBurn documentation, but it wouldn't work and I was just controlling the air assist manually from the laser control panel. Also, I could not find anywhere else where someone had doc this issue.

The laser has a KT332N Rudia controller and I finally figured out that there were conflicting settings in the vendor parameters that LightBurn was not accessing. Had to set the Aux Air to "Blow when laser" and set the Open and Close times to 0. I now have full control through the software. 🎉​ #Lasercutting #Lightburn

Er war jung und brauchte den Stifthalter. Oder so. 😜

2 Stunden Design-Gefrickel für mich, 45 Minuten auslasern für den Sculpfun S10. Mal sehn ob's am Ende alles zusammenpasst.

#Lasercutter #Sculpfun #Lightburn #Schreibtisch #deko

@concretedog Do you have any resources to share as it relates to Laser Engraving? I'm just starting out with an #Xtool engraver and #Lightburn software.

I feel like I've made significant progress towards getting my #laser working again.

I've bought the bits, got #Grbl running on an #Arduino, and both #UGS and #Lightburn talking to it.

It's like I have a virtual laser cutter 🤔
Now to address the physical side of the project, and transplant the Arduino to replace the dodgy (and expensive, and unavailable, and Australian, and not-really-supported) control board.

General Interests:
#programming #videoproduction #filmmaking #musicproduction #synth #making #electronics #lasercutting #3dprinting #cnc

Tools I Use:
#c++ #c #webassembly #javascript #juce #qt #bitwig #freecad #shapeoko #lightburn #solvespace #openscad #esp32 #raspberrypi #linux #vim

Looking forward to interesting conversation and people with similar interests.

Time for an #intro

Married and have 2 teenage daughters that keep us busy with music, cross country and track meets. I #photograph those things

Built a #prusa i3 (old school) #reprap #3dprinter about 10 years ago. Upgraded a #k40 #lasercutter #lightburn

Tech director at the #theater where my kids attend school #ETCEosNomad

I work as an enterprise architect at Sandata, building software for payers and I/DD and Homecare providers.

#photography #dotnet #csharp #introduction #InstanceMigration

Very quick #Project today. My son wanted some signs to help him remember which bin was which to help when he is sorting the recycling.

20 minutes in #Lightburn and 2 minutes #LaserCutting later....

Might run a layer or two of stain over them, but quite happy with how they came out for half an our of work.

@sinza

Bonan tagon!

All my PCs are resurrected dinosaurs now running #Linux.

Not sure how old your definition of "older" is, but with #Linux Mint they're fully usable. I'm posting from a Dell M1330 which came with Windows Vista 😭 and it ran my #lasercutter, the design software #Lightburn, #OpenSCAD etc.

ha mince, la licence pour #lightburn (que j'utilise avec la graveuse laser) est en fait une licence… annuelle et non définitive -_-

mouais, ou je n'ai pas fait attention à la souscription, ou alors je pensais pouvoir la renouveler 1 an plus tard sans soucis 😂

#bricolage #laser
