iBook G3 (550mhz overclocked) serving as a Firewire target disk for my new acquisition, a Pismo Powerbook upgraded to a G4 by @dosdude1. I picked it up in trade for my Powercenter Pro G3. Love this little thing, Very pleased with it.

#macmods #Powerbook #Pismo #iBook #G3 #G4 #overclocking

Apple System Profiler showing the new clockspeeds.

#G3 #iBook #MacMods #PowerPC #Overclocking

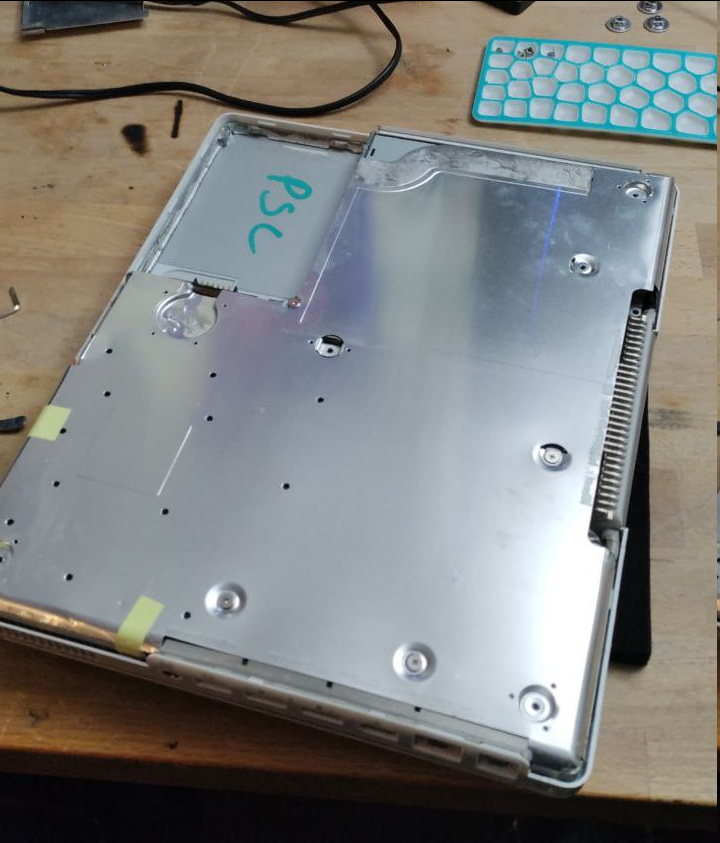

SHEESH I forgot how difficult these were to take apart.
I'm glad that apple smartened up and make the macbooks easy to work on.

Tore my iBook apart to repair a mild overclock I had performed on it almost 15 years ago.

Raised the bus speed from 66mhz to 100, and the CPU clock from 500 to 550mhz. A mild bump that makes it a little snappier.

I needed to make the repair since someone was interested in trading me for a G3 powerbook.

#G3 #iBook #MacMods #Overclocking #PowerPC

Overall a fun project with lots of ups and downs, fails and wins.

Fantastic way to turn a half-dead macbook into a full working desktop though!

If anyone has any ideas of what I could add to it, or if you have any questions or advice for taking on your own version of this, I'd love to hear it and help.

#macbox #macmods

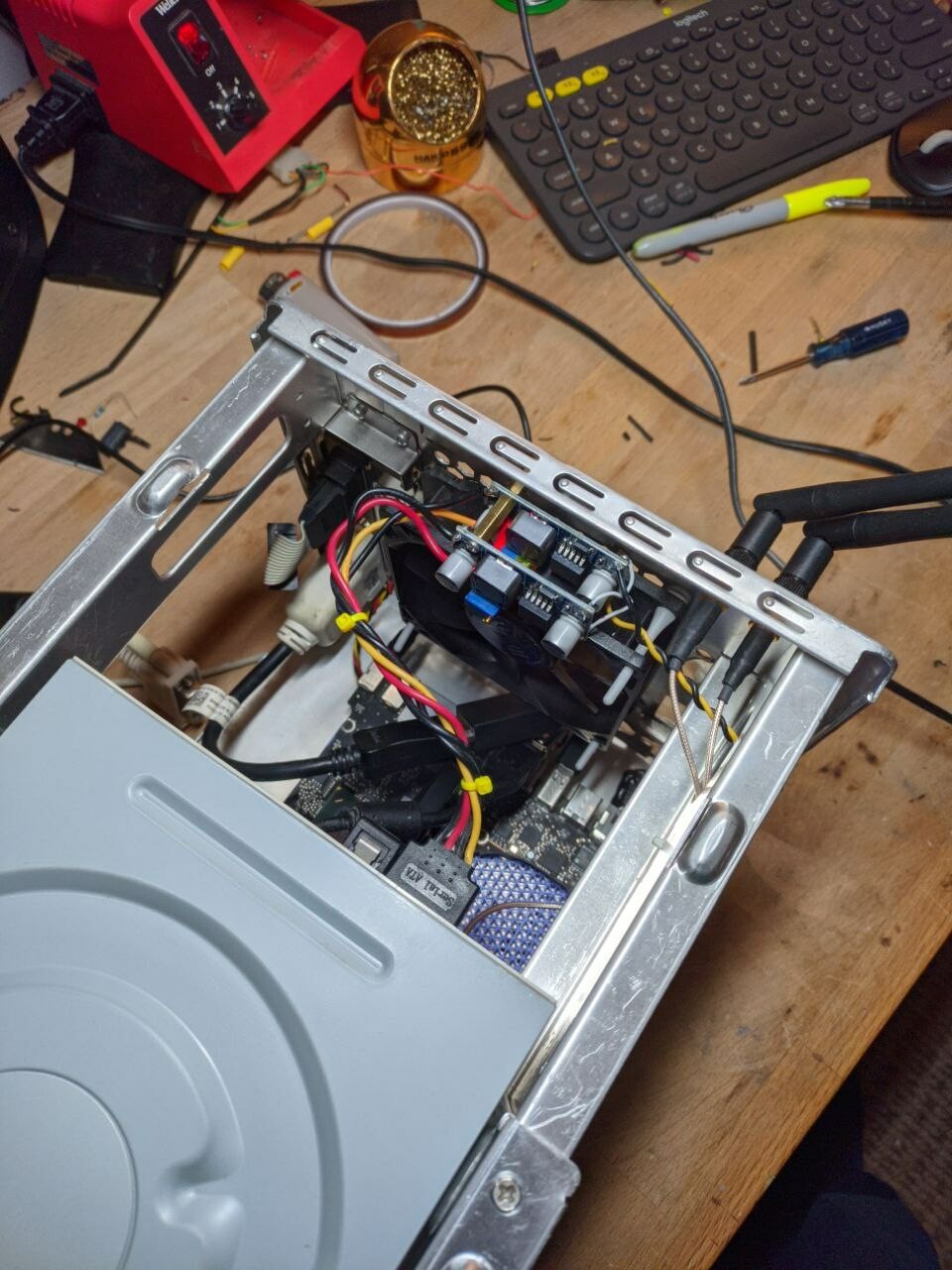

Adj. regulators came in. Hooked up to the charger plug on the logic board. Feeds regulated 12v and 5v to the optical drive now.

All works as it should! I think I'm done with this project for now, until I pick up a USB hub but I hardly need it at the moment. It does everything I need it to, and I use KB/Mouse over bluetooth. its got one free USB slot I can access on the back when needed. I'll eventually 3d print blanking plates and stuff for the back but it works great now.
#macbox #macmods

I still need to get some 12v regulators so I can knock the 18.5v of the apple PSU down to use for a DVD burner. This system is going to be my workbench computer and i need it to do floppy and optical burning. Going to try to wedge a 3.5" MO drive in there too, 2 of my classic machines have them and i love it as a format.

#MacBox #Macbook #Macmods #Project_musings

Little mods here and there improve it as I go along.

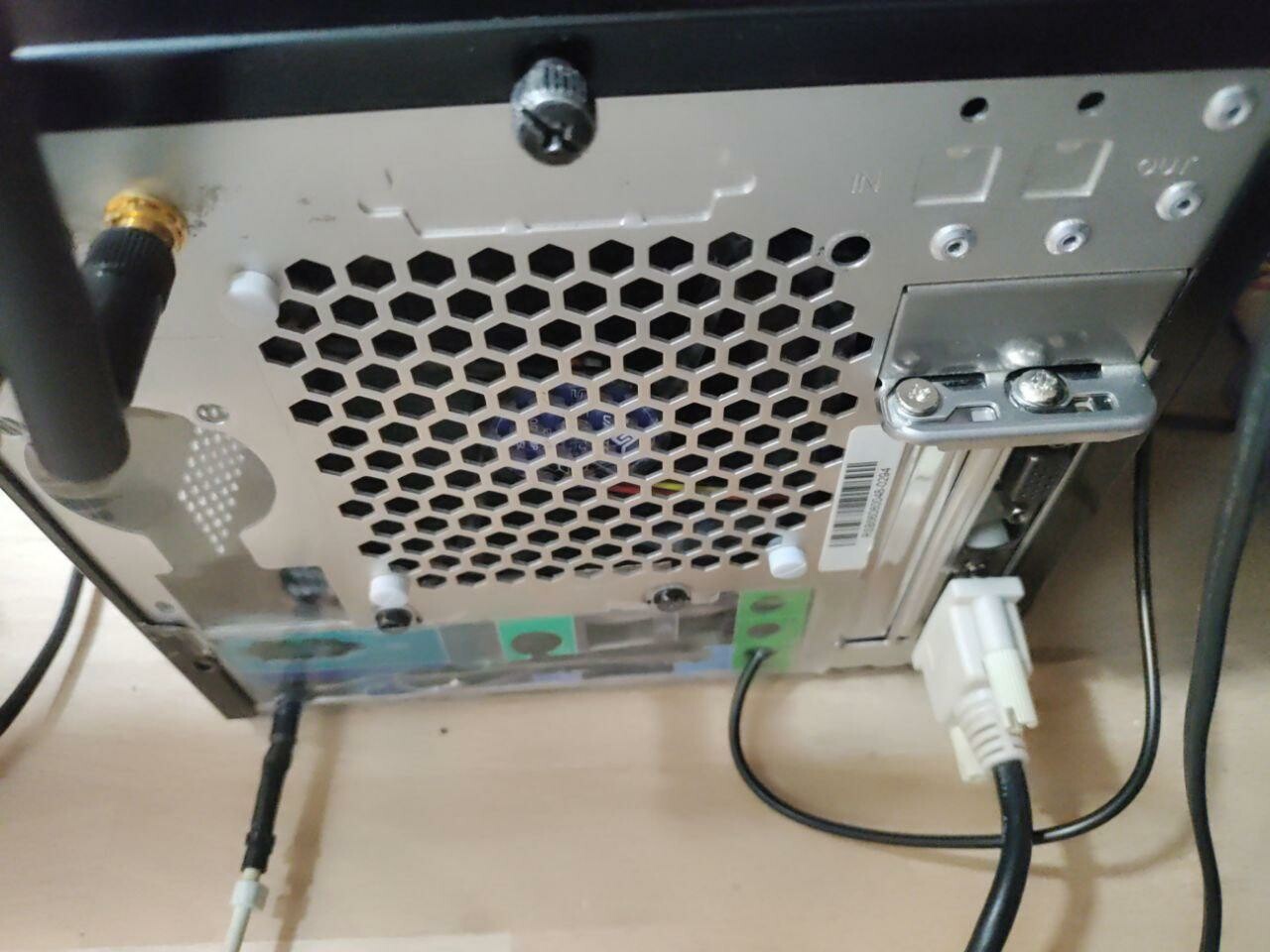

Mini Displayport to Displayport adapter, to a displayport to DVI adapter mounted to an old GPU PC plate so I can have external access to the video connector.

Also made a 180 USB connector so I can keep the USB Floppy drive cable internal and not have to snake it in and out of the case.

I still need to 3d print an I/O shield plate, but im going to wait until i have a USB hub for that. Tape will do for now.

#MacBox #Macbook #Macmods

Its got a little party trick too

#macbox #macmods #macbook #floppydisk

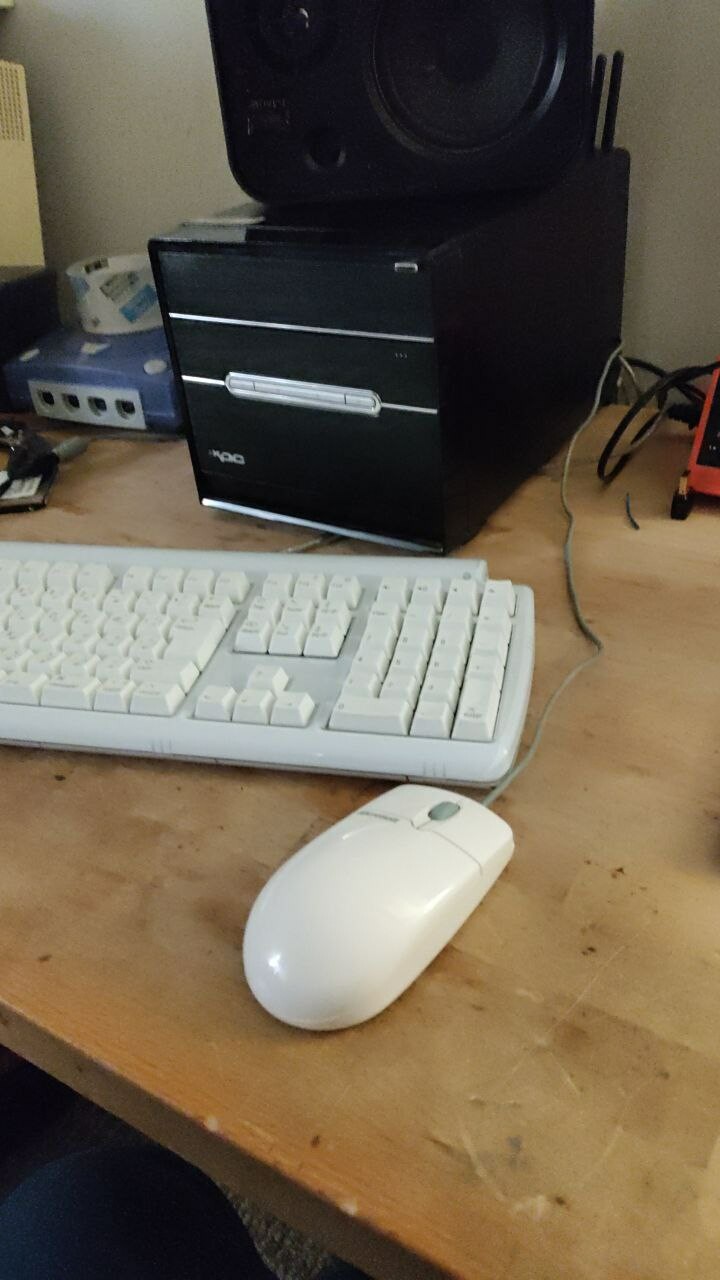

At a good stopping point now. Its a functional machine and the rest of what I need to do is going to be a little more involved. Need to figure out how to get 12v for running full size drives, add a USB 3 hub internally for more expansion, and print up some port shields for the back. But right now it's going to serve duty as my workstation computer.

#MacBox #macbook #macmods

Video of it booting from the front panel button

#macmods #MacBox #macbook

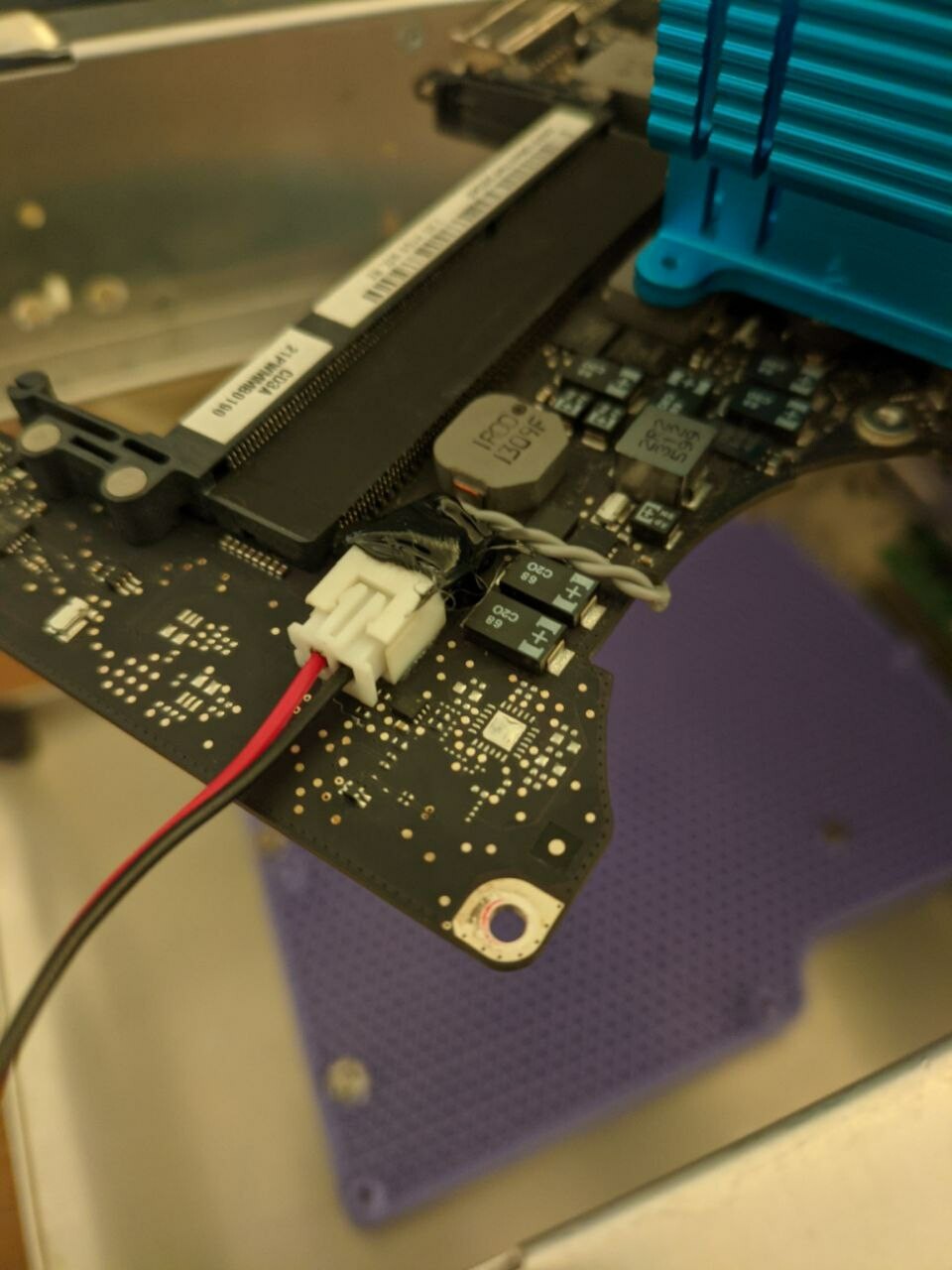

More detail on the power button hookup.

#macmods #macbox #macbook

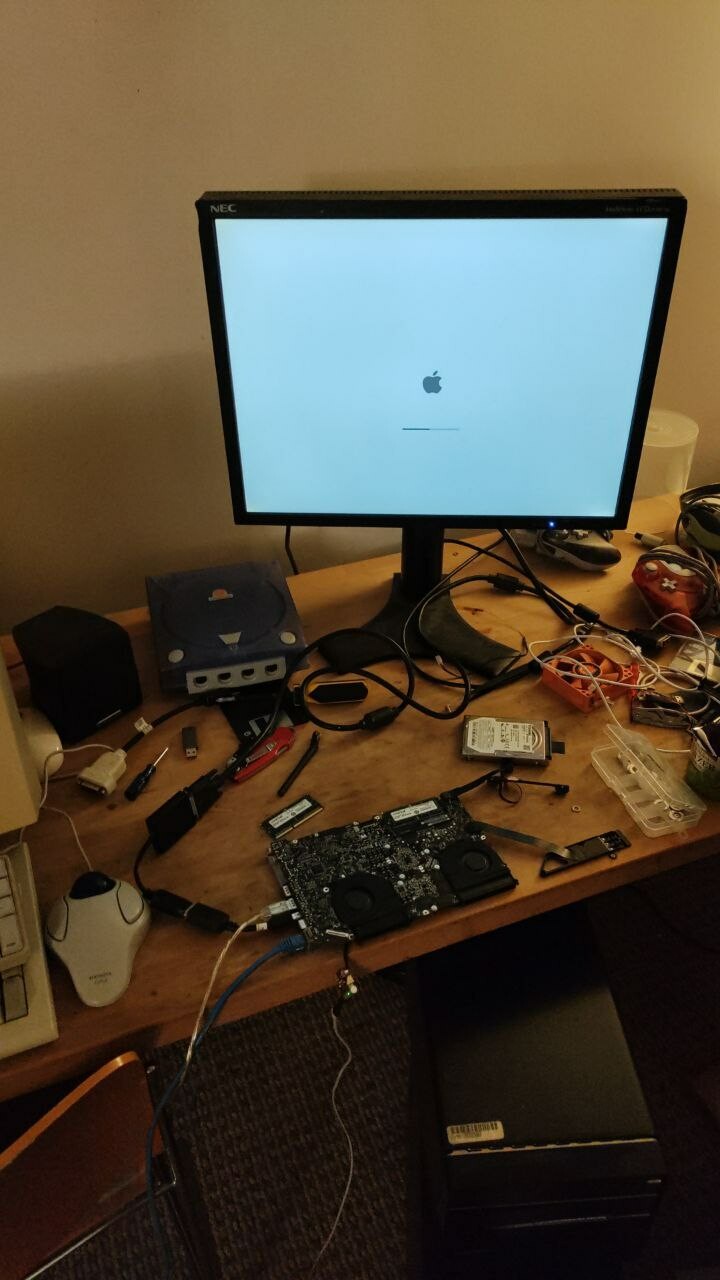

More progress on the MacBox Pro

Got the 2nd iteration of the logic board adapter tray printed up and did a test fit with the HDD cable and wifi module cable attached. Also got a power button soldered up to the testpads by the keyboard FFC.
The unit boots up and runs great, power button works. Still got lots to do.

#macmods #macbox #macbook #shuttle

My old MBP was gathering dust. The rj45 port, FW800, and SD card all didnt work (corrosion, ever since i got it second hand), and the keyboard was half dead.
I had an old shuttle XPC case laying around and got a silly idea.

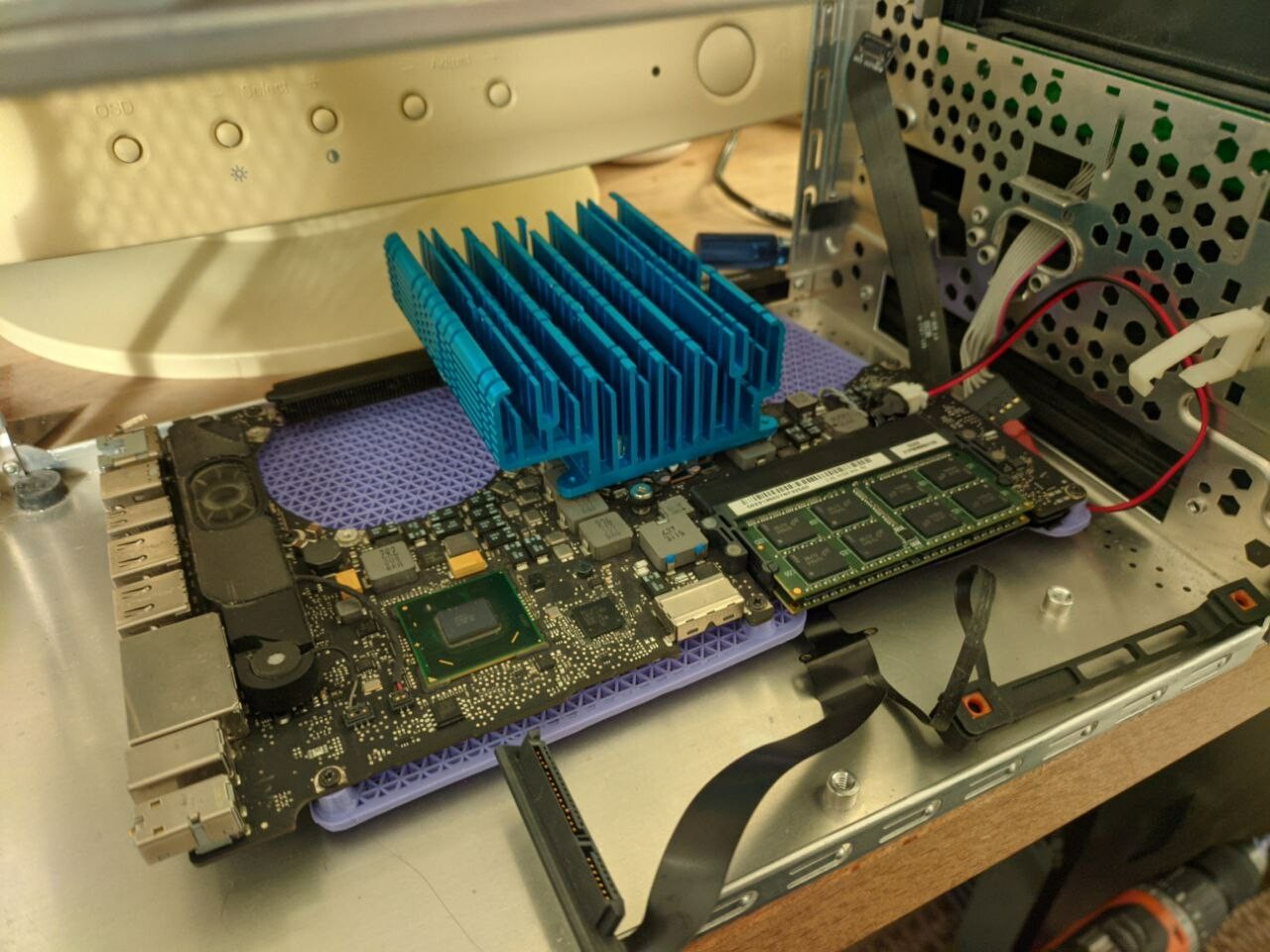

Here is the motherboard running, evicted from the macbook's chassis and with a big aluminum heat sink grafted onto the existing heat pipes (im not showing how, its ugly haha) and no fans!
Stress testing @ 76c passively!
#MacMods #modding #macbook #shuttle
