I decided to write up my #Psion #RS232 findings from today. It's not terrible news at all, but I was hoping for better.

#retrocomputing

https://hackaday.io/project/161291-the-last-psion/log/222358-usb-rs232-shenanigans

Well well well, what do we have here?

PL2303 #RS232 adapters with wee plastic cases!

https://www.aliexpress.com/item/32897654177.html

Want to transfer files between your #16bit #Psion and an #AppleSilicon machine, but don't know where to start? Good news!

A PL2303 USB-RS232 adapter, a copy of MCLINK.EXE, and a dash of @DOSBox_Staging is all you need.

Richard is here to help you out.

#retrocomputing #rs232

https://takajo.net/post/2023-3-connecting-psion-to-apple-silicon-mac/

Anyone got any tips on monitoring every pin (CTS, DTR, etc) on an #RS232 connection when you only have a cheap Cypress #logicanalyser?

I'm guessing I'm going to need to get a handful of RS232 to #TTL converters so that I don't blow up the analyser with ±12V. But if anyone has a better solution, I'm all ears.

#electronics #RetroComputing #retroelectronics

#oldcomputerchallenge Day 3
Today we serve simple terminal emulator st - compliant with #Unix philosophy - do one thing but it the best way. It will be decorated with beautiful font DejaVu Sans Mono. When you place the order, we add some delicious candies - 8-bit CPUs like #Z80, #65816 connected with #serial #RS232 cables (ok with smaller than +/- 12V voltage).

gopher://sdf.org/1/users/nutilius/occ-2023/

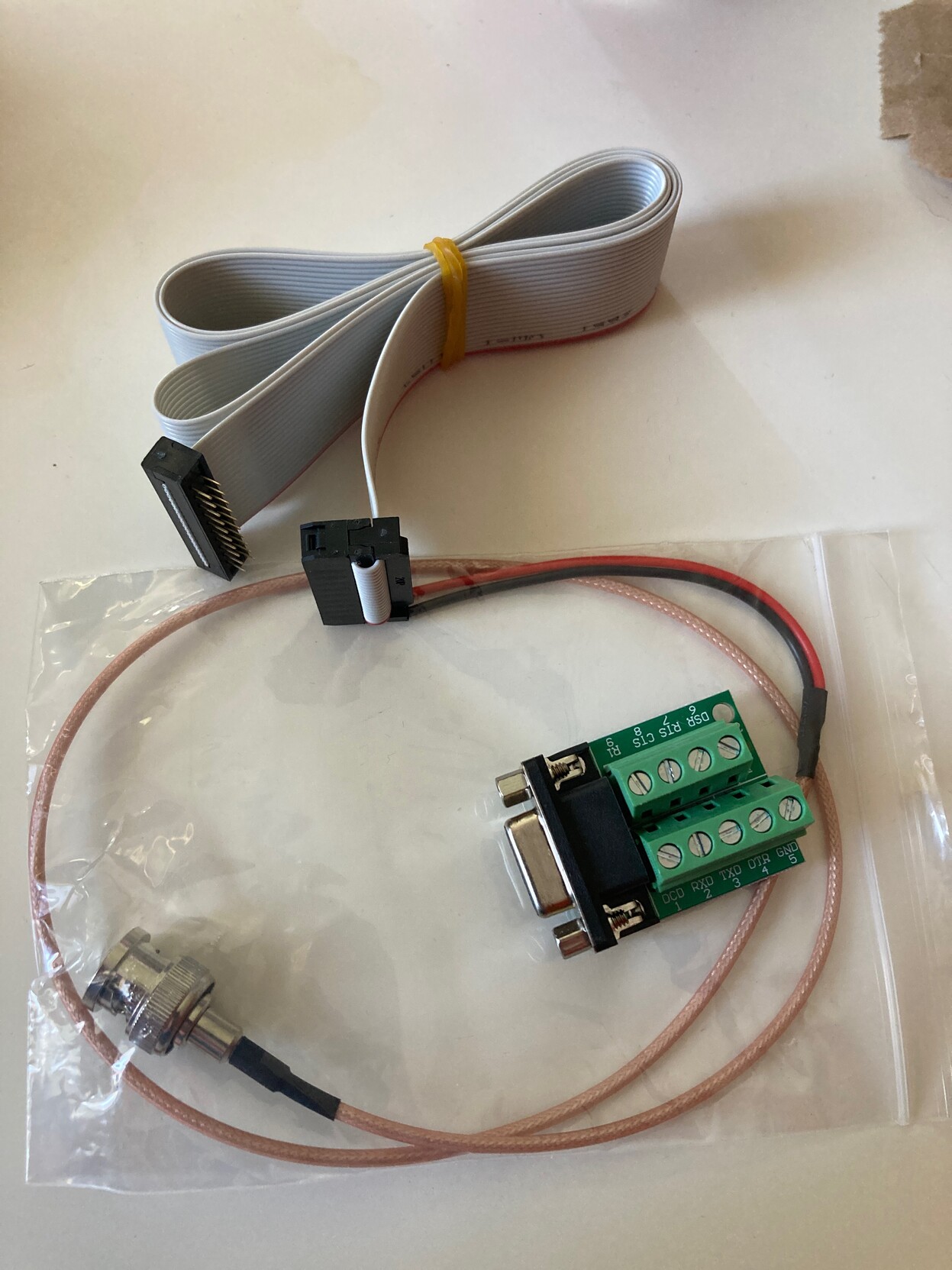

Aliexpress post poat today. 20pin ribbon cable for my Centronics project, BNC cable for repair of 80 column card and rs232 breakout. #apple2 #rs232 #retrocomputing #electronics

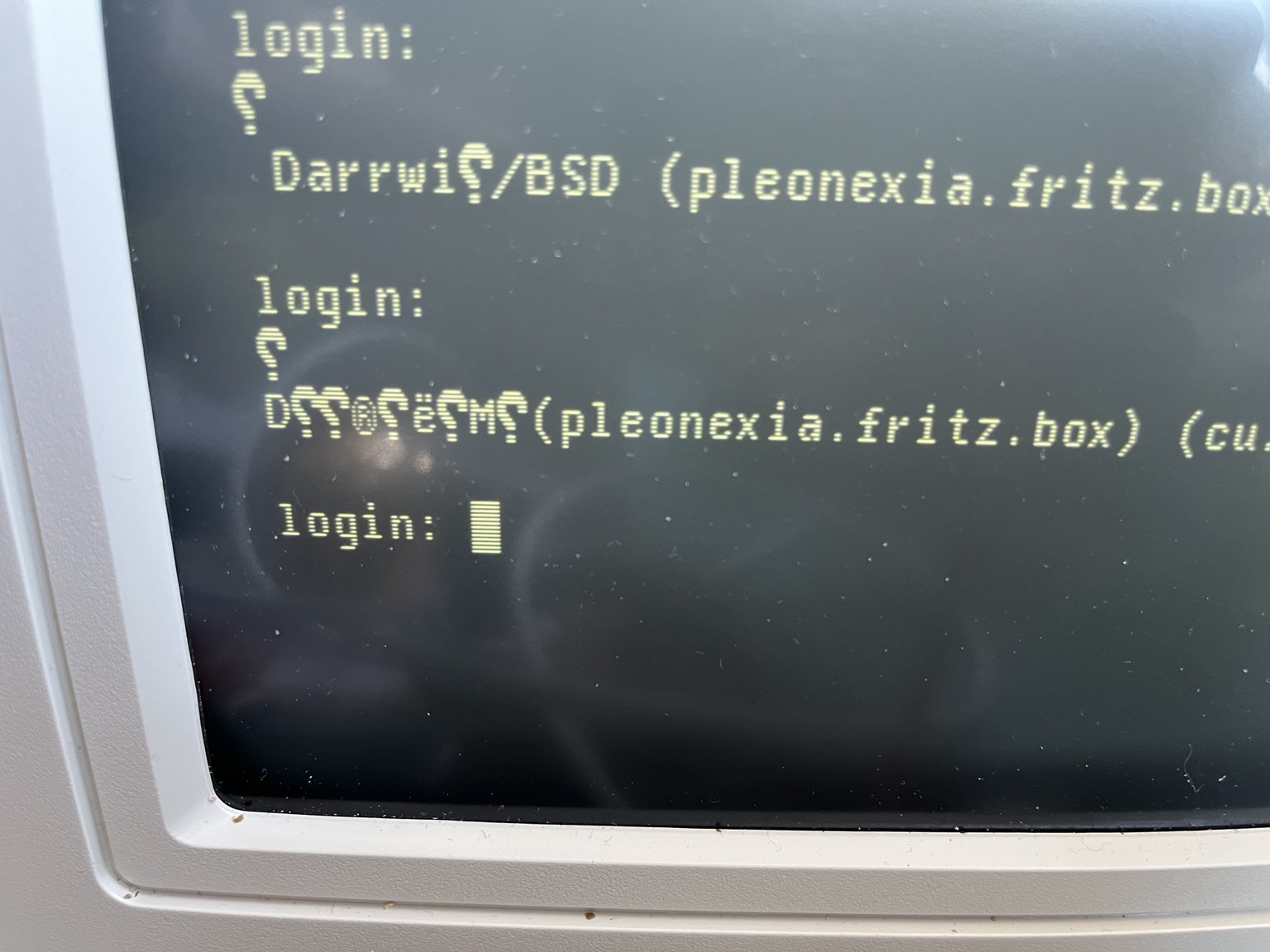

Further sleuthing revealed that the protocol decoding of my oscilloscope agreed with my new (to me) terminal: the little #USB doodad I was using to generate #RS232 was out of spec.

Anyway, I guess the moral of the story here is that they don’t make ‘em like they used to.

Does anyone know the #PSU voltage/pinout for a Pace Linnet intelligent V21/23 modem?

I haven’t had much luck finding details online so far, and I’d like to see if it works!

I went poking about inside and there are two rails + ground, one seems to go straight to a 5v regulator but the other needs more tracing out.

It would save me the effort if someone knows the pinout or has one they can probe!

#rs232 #retro #retroComputer #retroComputing #V21 #V23 #modem #dialup #pace #linnet

#RaspberryPiPico question:

Has anyone tried controlling and/or reading the DCD/DTR/DTS "lines" on the USB serial interface of the #Pico?

#RaspberryPi #RPi #RS232 #microcontroller #arduino

Happy #MSX2 anniversary everyone!
The 7th of May 1985 is when the second generation of the #MSX standard was introduced.
As well as the #Yamaha V9938 VDP (one of the first #GPU), it defined #RS232 support, Memory Mappers for multiple MBs of #RAM, and the MSX-AUDIO #OPL FM #synth!

@Epsi Well what if we made #Ethernet Adaptors using #RS232 ports and AT commands like a #Modem and added some beeper to do these sounds?

OFC I don't expect those slots to be #ISA or something but something like the #OldNet or #Wifi232-alike #NIC should be possible...

I mean if I had the €€€€€ and skills I'd likely try to build one of those myself for the #CommanderX16, but even a simple #RS232 card that can interface with some "#FakeModem" - #Network adapter would be sufficient.

https://youtu.be/nyByDNQuMMI?t=1656

Bought two #PCEngines #APU2 boxes to replace my home servers. 6w passive 4 core AMD-cpu instead of a way too hot NUC with a noisy fan.

https://pcengines.ch/apu2.htm

20 years ago I used a similar hardware (200MHz+ "486") as an #openbsd firewall.

This time it's #BSD and #Debian for different purposes. Just going to install them before stacking them together. I do wonder how much of an air gap I will need to have between them to avoid them heating up each other.

#Computing #Linux #Unix #RS232

An RS-232 HAT for a RPi 4! This is going to be cool. #RaspberryPi #RS232

7-inch #industrial Panel PC powered by a #RaspberryPi CM4 module with touchscreen display, #RS232, #RS485, 12-24V digital I/Os, and more. #linux #debian
https://www.cnx-software.com/2023/02/08/raspberry-pi-cm4-based-7-inch-industrial-panel-pc-takes-io-board-with-rs232-12v-24v-inputs-and-outputs/

Original tweet : https://twitter.com/cnxsoft/status/1623314194987913216

Jemand eine Idee zu #RS232 über WLAN? Geräte? Software? Möglichst auch Linux-tauglich?

#ESP32-C3 board with isolated #RS232 and #RS485 interfaces. #arduino #industrial
https://www.cnx-software.com/2023/01/20/lilygo-t-rsc3-esp32-c3-board-features-isolated-rs232-rs485-interfaces-5-to-24v-dc-input/

Original tweet : https://twitter.com/cnxsoft/status/1616329862272409602

@grndmstrfesxh
Was für ein Bug! 🤣
Das Problem ist die Schnittstelle, ich glaube der hat noch #RS232…

Is there a #HomeAutomation / #HomeAssistant expert on here that can help me figure out how to intercept #RS232 RJ45 wires so that I can control some legacy thermostats and shades? Serial protocols are so foreign to me.

Hi #hivemind, has anyone got the #Wyse WY-120 #serial #terminal to work correctly on #Linux with any #terminfo entries? Specifically, it has trouble with backspace/delete, arrow keys and general #curses page layout. #Halp?

PS: I've seen @veronicaexplains's wonderful video on the WY-55 but this one unforunately seems to have different behaviour.

#retro #retrocomputing #serialport #serialcommunications #termcap #tty #ttyusb #rs232 #ncurses
